System Administration Guide: Network Services
Previous Next

Planning a Dial-up PPP Link

Dial-up links are the most commonly used PPP links. This section includes the following information:

Typically, you only configure the machine at one end of the dial-up PPP link, the dial-out machine, or the dial-in server. For an introduction to dial-up PPP, refer to Dial-up PPP Overview.

Before You Set Up the Dial-out Machine

Before you configure a dial-out machine, gather the information that is listed in the following table.


Note - The planning information in this section does not include information to be gathered about authentication or PPPoE. For details about authentication planning, refer to Planning for Authentication on a Link. For PPPoE planning, refer to Planning for DSL Support Over a PPPoE Tunnel.


Table 16-2 Information for a Dial-out Machine

Information

Action

Maximum modem speed

Refer to documentation that was provided by the modem manufacturer.

Modem connection commands (AT commands)

Refer to documentation that was provided by the modem manufacturer.

Name to use for dial-in server at the other end of the link

Create any name that helps you identify the dial-in server.

Login sequence that was required by dial-in server

Contact the dial-in server's administrator or ISP documentation if dial-in server is at the ISP.

Before You Set Up the Dial-in Server

Before you configure a dial-in server, gather the information that is listed in the following table.


Note - The planning information in this section does not include information to be gathered about authentication or PPPoE. For details about authentication planning, refer to Planning for Authentication on a Link. For PPPoE planning, refer to Planning for DSL Support Over a PPPoE Tunnel.


Table 16-3 Information for a Dial-in Server

Information

Action

Maximum modem speed

Refer to documentation that was provided by the modem manufacturer.

User names of people who are permitted to call the dial-in server

Obtain the names of the prospective users before you set up their home directories, as discussed in How to Configure Users of the Dial-in Server.

Dedicated IP address for PPP communications

Obtain an address from the individual at your company who is responsible for delegating IP addresses.

Example of a Configuration for Dial-up PPP

The tasks to be introduced in Chapter 17, Setting Up a Dial-up PPP Link (Tasks) execute a small company's requirement to let employees work at home a few days a week. Some employees require the Solaris OS on their home machines. These workers also need to log in remotely to their work machines on the corporate Intranet.

The tasks set up a basic dial-up link with the following features:

  • The dial-out machines are at the houses of employees who need to call the corporate intranet.

  • The dial-in server is a machine on the corporate intranet that is configured to receive incoming calls from employees.

  • UNIX-style login is used to authenticate the dial-out machine. Stronger Solaris PPP 4.0 authentication methods are not required by the company`s security policy.

The next figure shows the link that is set up in Chapter 17, Setting Up a Dial-up PPP Link (Tasks).

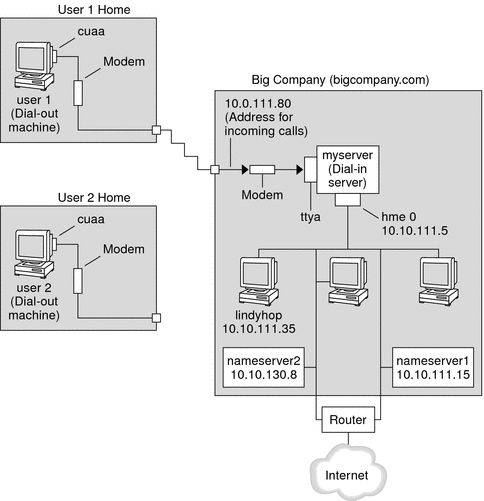

Figure 16-1 Sample Dial-up Link
Figure shows the sample link to be used in dial-up tasks. The following context describes the sample link.

In this figure, a remote host dials out through its modem over telephone lines to Big Company's Intranet. Another host is configured to dial out to Big Company but currently is inactive. The calls from remote users are answered in the order received by the modem that is attached to the dial-in server at Big Company. A PPP connection is established between the peers. The dial-out machine can then remotely log in to a host machine on the Intranet.

Where to Go for More Information About Dial-up PPP

Refer to the following:
