Eclipse Plug-in Developer Guide
Previous Page Home Next Page

Retargetable action set actions

The readmetool action set also defines retargetable actions.  The action remains visible as long as the readme action set is visible, but it is only enabled when a view or editor that implements the action is active.  When using action sets to define retargetable actions, the actions are created in the action set markup rather than in code.  The following is from the readme tool's action set definition:

<extension point = "org.eclipse.ui.actionSets">
	   <actionSet id="org_eclipse_ui_examples_readmetool_actionSet"
		   label="%ActionSet.name"
		   visible="true">
...
<action id="org_eclipse_ui_examples_readmetool_readmeRetargetAction"
   menubarPath="window/org_eclipse_ui_examples_readmetool/slot1"
   toolbarPath="readme"
   label="%ReadmeRetargetAction.label"
   tooltip="%ReadmeRetargetAction.tooltip"
   helpContextId="org.eclipse.ui.examples.readmetool.open_browser_action_context"
   icon="icons/ctool16/openbrwsr.png"
   retarget="true">
</action>
<action id="org_eclipse_ui_examples_readmetool_readmeRelabelRetargetAction"
   menubarPath="window/org_eclipse_ui_examples_readmetool/slot1"
   toolbarPath="readme"
   label="%ReadmeRelabelRetargetAction.label"
   tooltip="%ReadmeRelabelRetargetAction.tooltip"
   helpContextId="org.eclipse.ui.examples.readmetool.open_browser_action_context"
   icon="icons/ctool16/openbrwsr.png"
   retarget="true"
   allowLabelUpdate="true">
</action>
...

Retargeted actions are specified by using the retarget="true" attribute.  This will cause a RetargetAction to be created in the action set.  Note that the retargetable actions do not specify an implementing class since it is up to each view or editor in the plug-in to set up a handler that implements each action.  If the allowLabelUpdate is true, then a LabelRetargetAction will be created instead.

The retargeted actions will be visible in the window menu when the readme action set is visible.  However, they will not be enabled if the readme tool's editor or outline view are not active.

Readme File Editor menu with two grayed items and one enabled item



What do the editor and view have to do?  Again, the client side is similar to registering a handler for the workbench or an editor's retargetable action.  The action id specified in the markup must be used when registering a global action handler.

The ReadmeEditorActionBarContributor takes care of this for the editor.  First, it defines the handlers for the actions.

public ReadmeEditorActionBarContributor() {
	...
	handler4 = new EditorAction(MessageUtil.getString("Editor_Action4"));
	handler5 = new EditorAction(MessageUtil.getString("Editor_Action5"));
	handler5.setToolTipText(MessageUtil.getString("Readme_Editor_Action5"));
	...
}

The handlers are registered at the same time that the handlers for the editor retargetable actions were registered.

public void init(IActionBars bars, IWorkbenchPage page) {
	...
	bars.setGlobalActionHandler(IReadmeConstants.ACTION_SET_RETARGET4, handler4);
	bars.setGlobalActionHandler(IReadmeConstants.ACTION_SET_LABELRETARGET5, handler5);
	...
}

Recall that action bar contributors are shared among different instances of the same editor.  This means the handlers must be notified if the active editor for the ReadmeEditorActionBarContributor changes.

public void setActiveEditor(IEditorPart editor) {
	...
	handler4.setActiveEditor(editor);
	handler5.setActiveEditor(editor);
	...
}

That's it for the editor.  We should see these actions enable when the editor is activated.

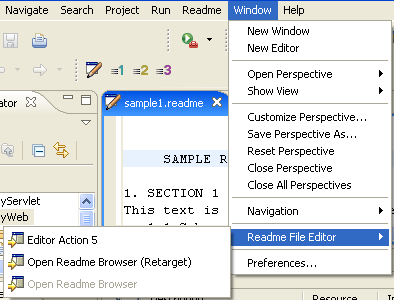

Readme File Editor menu with actions enabled

Note that the label for the first retargetable action ("Editor Action 4") was not used since the action set XML markup did not set allowLabelUpdate.

The ReadmeContentOutlinePage defines its handlers in the same place it defined handlers for the editor's retargetable actions:

public void createControl(Composite parent) {
	...
	action = new OutlineAction(MessageUtil.getString("Outline_Action4"));
	getSite().getActionBars().setGlobalActionHandler(
		IReadmeConstants.ACTION_SET_RETARGET4,
		action);
	action = new OutlineAction(MessageUtil.getString("Outline_Action5"));
	action.setToolTipText(MessageUtil.getString("Readme_Outline_Action5"));
	getSite().getActionBars().setGlobalActionHandler(
		IReadmeConstants.ACTION_SET_LABELRETARGET5,
		action);
}

We should see its relabeled action when the content outliner is active.

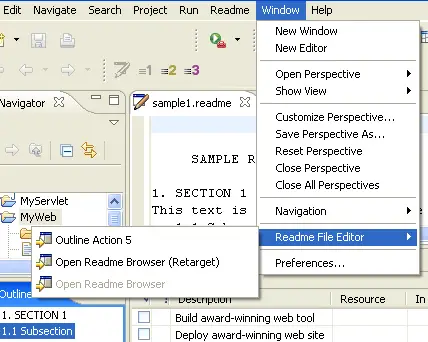

Readme File Editor menu with renamed action
