NOTE: CentOS Enterprise Linux 5 is built from the Red Hat Enterprise Linux source code. Other than logo and name changes CentOS Enterprise Linux 5 is compatible with the equivalent Red Hat version. This document applies equally to both Red Hat and CentOS Enterprise Linux 5.

33.2. Adding an IPP Printer

An IPP printer is a printer attached to a different system on the same TCP/IP network. The system this printer is attached to may either be running CUPS or simply configured to use IPP.

If a firewall is enabled on the printer server, then the firewall should be configured to allow send / receive connections on the incoming UDP port 631. If a firewall is enabled on on the client (the system sending the print request) then the firewall must be allowed to accept and create connections through port 631.

You can add a networked IPP printer by clicking the New Printer button in the main Printer Configuration Tool window to display the window in Figure 33.2, “Adding a Printer”. Enter the Printer Name (printer names cannot contain spaces and may contain letters, numbers, dashes (-), and underscores (_)), Description, and Location to distinguish this printer from others that you may configure on your system. Click Forward to proceed.

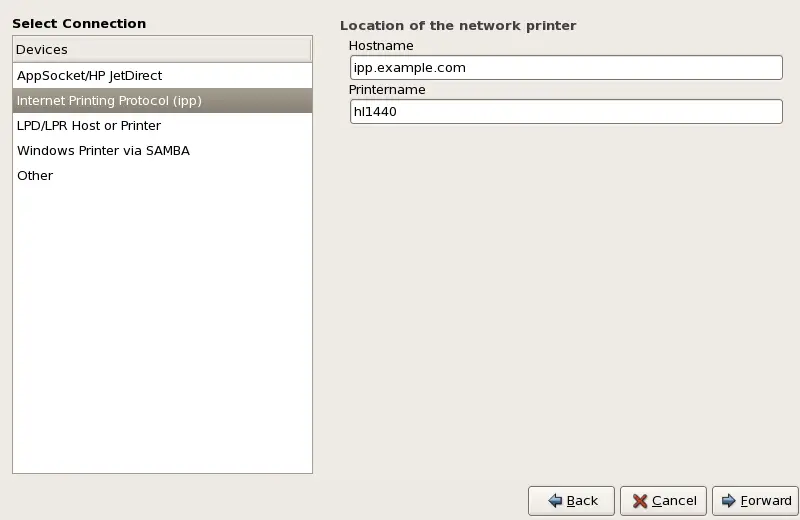

In the window shown in Figure 33.4, “Adding an IPP Printer”, enter the hostname of the IPP printer in the Hostname field as well as a unique name for the printer in the Printername field.

Adding an IPP Printer

Figure 33.4. Adding an IPP Printer

Click Forward to continue.

Next, select the printer type. Refer to Section 33.5, “Selecting the Printer Model and Finishing” for details.
