13.10. Caching and Pre-Caching

In some situations, you may have data that is expensive to generate but must be created on the fly. If the data can be reused, it may be more efficient to cache it. This will save the CPU cycles that regenerating the data would incur and will improve performance (at the expense of using more memory to cache the results).

If the data set is final, it can be a good idea to generate this data set at server startup and then share it with all the child processes, thus saving both memory and time.

We'll create a calendar example similar to the ones many online services use to allow their users to choose dates for online forms or to navigate to pages specific to a particular date. Since we are talking about dynamic pages, we cannot allow the calendar to be static.

To make our explanations easier, let's assume that we are trying to build a nice navigation system for forums, but will implement only the temporal navigation. You can extend our code to add the actual forums and interface elements to change presentation modes (index, thread, nested) and to change forums (perl, mod_perl, apache).

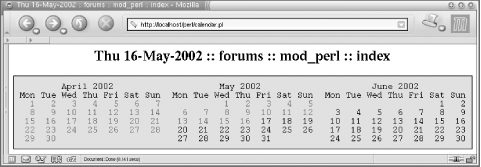

In Figure 13-1, you can see how the calendar looks if today is May 16, 2002 and the user has just entered the site. You can see that only day numbers before this date are linked to the data for those dates. The current month appears between the previous month, April, and the next to come, June. June dates aren't linked at all, since they're in the future.

Figure 13-1

Figure 13-1. The calendar as seen on May 16, 2002

We click on April 16 and get a new calendar (see Figure 13-2), where April is shown in the middle of the two adjacent months. Again, we can see that in May not all dates are linked, since we are still in the middle of the month.

Figure 13-2

Figure 13-2. After clicking on the date April 16, 2002

In both figures you can see a title (which can be pretty much anything) that can be passed when some link in the calendar is clicked. When we go through the actual script that presents the calendar we will show this in detail.

As you can see from the figures, you can move backward and forward in time by clicking on the righthand or lefthand month. If you currently have a calendar showing Mar-Apr-May, by clicking on some day in March, you will get a calendar of Feb-Mar-Apr, and if you click on some day in May you will see Apr-May-Jun.

Most users will want to browse recent data from the forums—especially the current month and probably the previous month. Some users will want to browse older archives, but these users would be a minority.

Since the generation of the calendar is quite an expensive operation, it makes sense to generate the current and previous months' calendars at server startup and then reuse them in all the child processes. We also want to cache any other items generated during the requests.

In order to appreciate the results of the benchmark presented at the end of this section, which show the benefits of caching for this application, it's important to understand how the application works. Therefore, let's explain the code first.

First we create a new package and load Date::Calc:

package Book::Calendar;
use Date::Calc ( );

Date::Calc, while a quite bloated module, is very useful for working with dates.

We have two caches, one for one-month text calendars (%TXT_CAL_CACHE, where we will cache the output of Date::Calc::Calendar( )), and the other for caching the real three-month HTML calendar components:

my %HTML_CAL_CACHE = ( );
my %TXT_CAL_CACHE = ( );

The following variable controls the last day the current month's calendar was updated in the cache. We will explain this variable (which serves as a flag) in a moment.

my $CURRENT_MONTH_LAST_CACHED_DAY = 0;

The debug constant allows us to add some debug statements and keep them in the production code:

use constant DEBUG => 1;

All the code that is executed if DEBUG is true:

warn "foo" if DEBUG;

will be removed at compile time by Perl when DEBUG is made false (in production, for example).

This code prebuilds each month's calendar from three months back to one month forward. If this module is loaded at server startup, pre-caching will happen automatically and data will be shared between the children, so you save both memory and time. If you think that you need more months cached, just adjust this pre-caching code.

my ($cyear,$cmonth) = Date::Calc::Today( );
for my $i (-3..1) {
    my($year, $month) =
        Date::Calc::Add_Delta_YMD($cyear, $cmonth, 1, 0, $i, 0);
    my $cal = '';
    get_html_calendar(\$cal, $year, $month);
}

The get_text_calendar function wraps a retrieval of plain-text calendars generated by Date::Calc::Calendar( ), caches the generated months, and, if the month was already cached, immediately returns it, thus saving time and CPU cycles.

sub get_text_calendar{
    my($year, $month) = @_;
    unless ($TXT_CAL_CACHE{$year}{$month}) {
        $TXT_CAL_CACHE{$year}{$month} = Date::Calc::Calendar($year, $month);
        # remove extra new line at the end
        chomp $TXT_CAL_CACHE{$year}{$month};
    }
    return $TXT_CAL_CACHE{$year}{$month};
}

Now the main function starts.

sub get_html_calendar{
    my $r_calendar = shift;
    my $year   = shift || 1;
    my $month  = shift || 1;

get_html_calendar( ) is called with a reference to a final calendar and the year/month of the middle month in the calendar. Remember that the whole widget includes three months. So you call it like this, as we saw in the pre-caching code:

my $calendar = '';
get_html_calendar(\$calendar, $year, $month);

After get_html_calendar( ) is called, $calendar contains all the HTML needed.

Next we get the current year, month, and day, so we will know what days should be linked. In our design, only past days and today are linked.

my($cur_year, $cur_month, $cur_day) = Date::Calc::Today( );

The following code decides whether the $must_update_current_month_cache flag should be set or not. It's used to solve a problem with calendars that include the current month. We cannot simply cache the current month's calendar, because on the next day it will be incorrect, since the new day will not be linked. So what we are going to do is cache this month's day and remember this day in the $CURRENT_MONTH_LAST_CACHED_DAY variable, explained later.

my $must_update_current_month_cache = 0;
for my $i (-1..1) {
    my($t_year, $t_month) =
        Date::Calc::Add_Delta_YMD($year, $month, 1, 0, $i, 0);
    $must_update_current_month_cache = 1
        if $t_year =  = $cur_year and $t_month =  = $cur_month
            and $CURRENT_MONTH_LAST_CACHED_DAY < $cur_day;
    last if $must_update_current_month_cache;
}

Now the decision logic is simple: we go through all three months in our calendar, and if any of them is the current month, we check the date when the cache was last updated for the current month (stored in the $CURRENT_MONTH_LAST_CACHED_DAY variable). If this date is less than today's date, we have to rebuild this cache entry.

unless (exists $HTML_CAL_CACHE{$year}{$month}
        and not $must_update_current_month_cache) {

So we enter the main loop where the calendar is HTMLified and linked. We enter this loop if:

  1. There is no cached copy of the requested month.

  2. There is a cached copy of the requested month, but it includes the current month and the next date has arrived; we need to rebuild it again, since the new day should be linked as well.

The following is the debug statement we mentioned earlier. This can help you check that the cache works and that you actually reuse it. If the constant DEBUG is set to a true value, the warning will be output every time this loop is entered.

warn "creating a new calendar for $year $month\n" if DEBUG;

When we load this module at server startup, the pre-caching code we described earlier gets executed, and we will see the following warnings (if DEBUG is true):

creating a new calendar for 2000 9
creating a new calendar for 2000 10
creating a new calendar for 2000 11
creating a new calendar for 2000 12
creating a new calendar for 2001 1

        my @cal = ( );

Now we create three calendars, which will be stored in @cal:

for my $i (-1..1) {
    my $id = $i+1;

As you can see, we make a loop (-1,0,1)so we can go one month back from the requested month and one month forward in a generic way.

Now we call Date::Calc::Add_Delta_YMD( ) to retrieve the previous, current, or next month by providing the requested year and month, using the first date of the month. Then we add zero years, $i months, and zero days. Since $i loops through the values (-1, 0, 1), we get the previous, current, and next months:

my ($t_year, $t_month) =
    Date::Calc::Add_Delta_YMD($year, $month, 1, 0, $i, 0);

Next, we get the text calendar for a single month. It will be cached internally by get_text_calendar( ) if it wasn't cached already:

$cal[$id] = get_text_calendar($t_year, $t_month);

The following code determines whether the requested month is the current month (present), a month from the past, or the month in the future. That's why the decision variable has three possible values: -1, 0, and 1 (past, present, and future, respectively). We will need this flag when we decide whether a day should be linked or not.

my $yearmonth = sprintf("%0.4d%0.2d", $t_year, $t_month);
my $cur_yearmonth = sprintf("%0.4d%0.2d", $cur_year, $cur_month);

# tri-state: ppf (past/present/future)
my $ppf = $yearmonth <=> $cur_yearmonth;
  # If    $yearmonth =  = $cur_yearmonth, $ppf = 0;
  # elsif $yearmonth < $cur_yearmonth,  $ppf = -1;
  # elsif $yearmonth > $cur_yearmonth,  $ppf = 1;

This regex is used to substitute days in the textual calendar returned by Date::Calc::Calendar( ) with links:

$cal[$id] =~ s{(\s\d|\b\d\d)\b}
              {link_days($1, $yearmonth, $ppf, $cur_day)}eg;

It means: "Find a space followed by a digit, or find two digits (in either case with no adjoining digits), and replace what we've found with the result of the link_days( )subroutine call." The e option tells Perl to execute the substitution expression—i.e., to call link_days( )—and the g option tells Perl to perform the substitution for every match found in the source string. Note that word boundaries are zero-width assertions (they don't match any text) and are needed to ensure that we don't match the year digits. You can see them in the first line of the calendar:

           May 2002
  Mon Tue Wed Thu Fri Sat Sun
            1   2   3   4   5
    6   7   8   9  10  11  12
   13  14  15  16  17  18  19
   20  21  22  23  24  25  26
   27  28  29  30  31

The link_days( )subroutine will add HTML links only to dates that aren't in the future.

This line closes the for loop:

}

This code constructs an HTML table with three calendars and stores it in the cache. We use <pre> ... </pre> blocks to preserve the textual layout of the calendar:

# cache the HTML calendar for future use
$HTML_CAL_CACHE{$year}{$month} =
qq{
 <table border="0" cellspacing="0"
  cellpadding="1" bgcolor="#000000">
   <tr>
     <td>
       <table border="0" cellspacing="0"
        cellpadding="10" bgcolor="#ccccff">
         <tr>
           <td valign="top"><pre>$cal[0]</pre></td>
           <td valign="top"><pre>$cal[1]</pre></td>
           <td valign="top"><pre>$cal[2]</pre></td>
         </tr>
       </table>
     </td>
   </tr>
 </table>
};

If the $must_update_current_month_cache flag was turned on, the current month is re-processed, since a new day just started. Therefore, we update the $CURRENT_MONTH_LAST_CACHED_DAY with the current day, so that the next request in the same day will use the cached data:

# update the last cached day in the current month if needed
$CURRENT_MONTH_LAST_CACHED_DAY = $cur_day
    if $must_update_current_month_cache;

This line signals that the conditional block where the calendar was created is over:

}

Regardless of whether the calendar is created afresh or was already cached, we provide the requested calendar component by assigning it to a variable in the caller namespace, via the reference. The goal is for just this last statement to be executed and for the cache to do the rest:

$$r_calendar = $HTML_CAL_CACHE{$year}{$month};

  } # end of sub calendar

Note that we copy the whole calendar component and don't just assign the reference to the cached value. The reason for doing this lies in the fact that this calendar component's HTML text will be adjusted to the user's environment and will render the cached entry unusable for future requests. In a moment we will get to customize_calendar( ), which adjusts the calendar for the user environment.

This is the function that was called in the second part of the regular expression:

sub link_days {
    my ($token, $yearmonth, $ppf, $cur_day) = @_;

It accepts the matched space digit or two digits. We kept the space character for days 1 to 9 so that the calendar is nicely aligned. The function is called as:

link_days($token, 200101, $ppf, $cur_day);

where the arguments are the token (e.g., ' 2' or '31' or possibly something else), the year and the month concatenated together (to be used in a link), the past/present/future month flag, and finally the current date's day, which is relevant only if we are working in the current month.

We immediately return unmodified non-days tokens and break the token into two characters in one statement. Then we set the $fill variable to a single space character if the token included days below 10, or set it to an empty string. $day actually includes the date (1-31).

return $token unless my($c1, $c2) = $token =~ /^(\s|\d)(\d)$/;
my ($fill, $day) = ($c1 =~ /\d/) ? ('', $c1.$c2) : ($c1, $c2) ;

The function is not supposed to link days in future months, or days in this month that are in the future. For days in the future the function returns the token unmodified, which renders these days as plain text with no link.

# don't link days in the future
return $token if $ppf =  = 1 or ($ppf =  = 0 and $day > $cur_day);

Finally, those tokens that reach this point get linked. The link is constructed of the [URL] placeholder, the date arguments, and the [PARAMS] placeholder. The placeholders will be replaced with real data at runtime.

return qq{$fill<a href="[URL]?date=$yearmonth}.
       sprintf("%0.2d", $day).
       qq{&[PARAMS]" class="nolink">$day</a>};

The a tag's nolink class attribute will be used by the client code to render the links with no underlining, to make the calendar more visually appealing. The nolink class must be defined in a Cascading Style Sheet (CSS). Be careful, though—this might not be a very good usability technique, since many people are used to links that are blue and underlined.

This line conludes the link_days( ) function:

} # end of sub link_days

The customize_calendar( )subroutine takes a reference to a string of HTML (our calendar component, for example) and replaces the placeholders with the data we pass it. We do an efficient one-pass match and replace for both placeholders using the hash lookup trick. If you want to add more placeholders later, all that's needed is to add a new placeholder name to the %map hash:

# replace the placeholders with live data
# customize_calendar(\$calendar,$url,$params);
#######################
sub customize_calendar {
    my $r_calendar = shift;
    my $url        = shift || '';
    my $params     = shift || '';
    my %map = (
        URL    => $url,
        PARAMS => $params,
    );
    $$r_calendar =~ s/\[(\w+)\]/$map{$1}/g;

} # end of sub calendar

The module ends with the usual true statement to make require( ) happy:

1;

The whole Book::Calendar package is presented in Example 13-18.

Example 13-18. Book/Calendar.pm

package Book::Calendar;

use Date::Calc ( );

my %HTML_CAL_CACHE = ( );
my %TXT_CAL_CACHE = ( );
my $CURRENT_MONTH_LAST_CACHED_DAY = 0;

use constant DEBUG => 0;

# prebuild this month's, 3 months back and 1 month forward calendars
my($cyear, $cmonth) = Date::Calc::Today( );
for my $i (-3..1) {
    my($year, $month) = Date::Calc::Add_Delta_YMD($cyear, $cmonth, 1, 0, $i, 0);
    my $cal = '';
    get_html_calendar(\$cal, $year, $month); # disregard the returned calendar
}

# $cal = create_text_calendar($year, $month);
# the created calendar is cached
######################
sub get_text_calendar {
    my($year,$month) = @_;
    unless ($TXT_CAL_CACHE{$year}{$month}) {
        $TXT_CAL_CACHE{$year}{$month} = Date::Calc::Calendar($year, $month);
        # remove extra new line at the end
        chomp $TXT_CAL_CACHE{$year}{$month};
    }
    return $TXT_CAL_CACHE{$year}{$month};
}

# get_html_calendar(\$calendar,1999,7);
######################
sub get_html_calendar {
    my $r_calendar = shift;
    my $year   = shift || 1;
    my $month  = shift || 1;

    my($cur_year, $cur_month, $cur_day) = Date::Calc::Today( );

    # should requested calendar be updated if it exists already?
    my $must_update_current_month_cache = 0;
    for my $i (-1..1) {
        my ($t_year, $t_month) =
            Date::Calc::Add_Delta_YMD($year, $month, 1, 0, $i, 0);
        $must_update_current_month_cache = 1
            if $t_year =  = $cur_year and $t_month =  = $cur_month
                and $CURRENT_MONTH_LAST_CACHED_DAY < $cur_day;
        last if $must_update_current_month_cache;
    }

    unless (exists $HTML_CAL_CACHE{$year}{$month}
            and not $must_update_current_month_cache) {

        warn "creating a new calendar for $year $month\n" if DEBUG;

        my @cal = ( );

        for my $i (-1..1) {
            my $id = $i+1;

            my ($t_year, $t_month) =
                Date::Calc::Add_Delta_YMD($year, $month, 1, 0, $i, 0);

            # link the calendar from passed month
            $cal[$id] = get_text_calendar($t_year, $t_month); # get a copy
            my $yearmonth = sprintf("%0.4d%0.2d", $t_year, $t_month);
            my $cur_yearmonth = sprintf("%0.4d%0.2d", $cur_year, $cur_month);

            # tri-state: ppf (past/present/future)
            my $ppf = $yearmonth <=> $cur_yearmonth;

            $cal[$id] =~ s{(\s\d|\b\d\d)\b}
                          {link_days($1, $yearmonth, $ppf, $cur_day)}eg;
        }

        # cache the HTML calendar for future use
        $HTML_CAL_CACHE{$year}{$month} =
        qq{
         <table border="0" cellspacing="0"
          cellpadding="1" bgcolor="#000000">
           <tr>
             <td>
               <table border="0" cellspacing="0"
                cellpadding="10" bgcolor="#ccccff">
                 <tr>
                   <td valign="top"><pre>$cal[0]</pre></td>
                   <td valign="top"><pre>$cal[1]</pre></td>
                   <td valign="top"><pre>$cal[2]</pre></td>
                 </tr>
               </table>
             </td>
           </tr>
         </table>
        };

        $CURRENT_MONTH_LAST_CACHED_DAY = $cur_day
            if $must_update_current_month_cache;

    }

    $$r_calendar = $HTML_CAL_CACHE{$year}{$month};

} # end of sub calendar

#
# link_days($token,199901,1,10);
###########
sub link_days {
    my($token, $yearmonth, $ppf, $cur_day) = @_;
    # $cur_day relevant only if $ppf =  = 0

    # skip non-days (non (\d or \d\d) )
    return $token unless my ($c1, $c2) = $token =~ /(\s|\d)(\d)/;

    my($fill, $day) = ($c1 =~ /\d/) ? ('', $c1.$c2) : ($c1, $c2) ;

    # don't link days in the future
    return $token if $ppf =  = 1 or ($ppf =  = 0 and $day > $cur_day);

    # link the date with placeholders to be replaced later
    return qq{$fill<a href="[URL]?date=$yearmonth}.
           sprintf("%0.2d",$day).
           qq{&[PARAMS]" class="nolink">$day</a>};

} # end of sub link_days


# replace the placeholders with live data
# customize_calendar(\$calendar,$url,$params);
#######################
sub customize_calendar {
    my $r_calendar = shift;
    my $url        = shift || '';
    my $params     = shift || '';
    my %map = (
        URL    => $url,
        PARAMS => $params,
    );
    $$r_calendar =~ s/\[(\w+)\]/$map{$1}/g;

} # end of sub calendar

1;

Now let's review the code that actually prints the page. The script starts by the usual strict mode, and adds the two packages that we are going to use:

use strict;
use Date::Calc ( );
use Book::Calendar ( );

We extract the arguments via $r->args and store them in a hash:

my $r = shift;
my %args = $r->args;

Now we set the $year, $month, and $day variables by parsing the requested date (which comes from the day clicked by the user in the calendar). If the date isn't provided we use today as a starting point.

# extract the date or set it to be today
my ($year, $month, $day) =
    ($args{date} and $args{date} =~ /(\d{4})(\d\d)(\d\d)/)
    ? ($1, $2, $3)
    : Date::Calc::Today( );

Then we retrieve or use defaults for the other arguments that one might use in a forum application:

my $do    = $args{do}    || 'forums';
my $forum = $args{forum} || 'mod_perl';
my $mode  = $args{mode}  || 'index';

Next we start to generate the HTTP response, by setting the Content-Type header to text/html and sending all HTTP headers:

$r->send_http_header("text/html");

The beginning of the HTML page is generated. It includes the previously mentioned CSS for the calendar link, whose class we have called nolink. Then we start the body of the page and print the title of the page constructed from the arguments that we received or their defaults, followed by the selected or current date:

my $date_str = Date::Calc::Date_to_Text($year, $month, $day);

my $title = "$date_str :: $do :: $forum :: $mode";
print qq{<html>
<head>
  <title>$title</title>
  <style type="text/css">
    <!--
    a.nolink { text-decoration: none; }
    -->
  </style>
</head>
<body bgcolor="white">
<h2 align="center">$title</h2>
};

Now we request the calendar component for $year and $month:

my $calendar = '';
Book::Calendar::get_html_calendar(\$calendar, $year, $month);

We adjust the links to the live data by replacing the placeholders, taking the script's URI from $r->uri, and setting the paramaters that will be a part of the link:

my $params = "do=forums&forum=mod_perl&mode=index";
Book::Calendar::customize_calendar(\$calendar, $r->uri, $params);

At the end we print the calendar and finish the HTML:

print $calendar;
print qq{</body></html>};

The entire script is shown in Example 13-19.

Example 13-19. calendar.pl

use strict;
use Date::Calc ( );
use Book::Calendar ( );

my $r = shift;
my %args = $r->args;

# extract the date or set it to be today
my($year, $month, $day) =
    ($args{date} and $args{date} =~ /(\d{4})(\d\d)(\d\d)/)
    ? ($1, $2, $3)
    : Date::Calc::Today( );

my $do    = $args{do}    || 'forums';
my $forum = $args{forum} || 'mod_perl';
my $mode  = $args{mode}  || 'index';

$r->send_http_header("text/html");

my $date_str = Date::Calc::Date_to_Text($year, $month, $day);

my $title = "$date_str :: $do :: $forum :: $mode";
print qq{<html>
<head>
  <title>$title</title>
  <style type="text/css">
    <!--
    a.nolink { text-decoration: none; }
    -->
  </style>
</head>
<body bgcolor="white">
<h2 align="center">$title</h2>
};

my $calendar = '';
Book::Calendar::get_html_calendar(\$calendar, $year, $month);

my $params = "do=forums&forum=mod_perl&mode=index";
Book::Calendar::customize_calendar(\$calendar, $r->uri, $params);
print $calendar;
print qq{</body></html>};

Now let's analyze the importance of the caching that we used in the Book::Calendar module. We will use the simple benchmark in Example 13-20 to get the average runtime under different conditions.

Example 13-20. bench_cal.pl

use strict;
use Benchmark;
use Book::Calendar;

my ($year, $month) = Date::Calc::Today( );

sub calendar_cached {
    ($year, $month) = Date::Calc::Add_Delta_YMD($year, $month, 1, 0, 0, 0);
    my $calendar = '';
    Book::Calendar::get_html_calendar(\$calendar, $year, $month);
}
sub calendar_non_cached {
    ($year, $month) = Date::Calc::Add_Delta_YMD($year, $month, 1, 0, 1, 0);
    my $calendar = '';
    Book::Calendar::get_html_calendar(\$calendar, $year, $month);
}

timethese(10_000,
          {
           cached     => \&calendar_cached,
           non_cached => \&calendar_non_cached,
          });

We create two subroutines: calendar_cached( ) and calendar_non_cached( ). Note that we aren't going to remove the caching code from Book::Calendar; instead, in the calendar_non_cached( ) function we will increment to the next month on each invocation, thus not allowing the data to be cached. In calendar_cached( ) we will request the same calendar all the time.

When the benchmark is executed on an unloaded machine, we get the following results:

panic% perl calendar_bench.pl
 Benchmark: timing 10000 iterations of cached, non_cached...
    cached:  0 wallclock secs ( 0.48 usr +  0.01 sys =  0.49 CPU)
non_cached: 26 wallclock secs (24.93 usr +  0.56 sys = 25.49 CPU)

The non-cached version is about 52 times slower. On the other hand, when a pretty heavy load is created, which is a common situation for web servers, we get these results:

panic% perl calendar_bench.pl
 Benchmark: timing 10000 iterations of cached, non_cached...
    cached:  3 wallclock secs ( 0.52 usr +  0.00 sys =  0.52 CPU)
non_cached: 146 wallclock secs (28.09 usr +  0.46 sys = 28.55 CPU)

We can see that the results of running the same benchmark on machines with different loads are very similar, because the module in question mostly needed CPU. It took six times longer to complete the same benchmark, but CPU-wise the performance is not very different from that of the unloaded machine. You should nevertheless draw your conclusions with care: if your code is not CPU-bound but I/O-bound, for example, the same benchmark on the unloaded and loaded machines will be very different.



Copyright © 2003 O'Reilly & Associates. All rights reserved.




  Published courtesy of O'Reilly Design by Interspire
