12.14. SSL Functionality and a mod_perl Server

If you need SSL functionality, you can get it by adding the mod_ssl or equivalent Apache-SSL to the light frontend server (httpd_docs) or the heavy backend mod_perl server (httpd_perl). The configuration and installation instructions are given in Chapter 3.

The question is, is it a good idea to add mod_ssl to the backend mod_perl-enabled server? If your internal network is secured, or if both the frontend and backend servers are running on the same machine and you can ensure a safe communication between the processes, there is no need for encrypted traffic between them.

If this is the situation, you don't have to put mod_ssl into the already heavy mod_perl server. You will have the external traffic encrypted by the frontend server, which will proxypass the unencrypted request and response data internally. This is depicted in Figure 12-11.

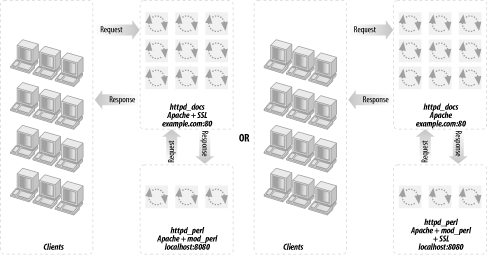

Figure 12-11

Figure 12-11. mod_proxy enabled-Apache with SSL and mod_perl-enabled Apache

Another important point is that if you put mod_ssl on the backend server, you have to tunnel back your images to it (i.e., have the backend serve the images), defeating the whole purpose of having the lightweight frontend server.

You cannot serve a secure page that includes nonsecure information. If you fetch over SSL an HTML page containing an <img> tag that fetches an image from the nonsecure server, the image is shown broken. This is true for any other nonsecure objects as well. Of course, if the generated response doesn't include any embedded objects (e.g., images) this isn't a problem.

Giving the SSL functionality to the frontend machine also simplifies configuration of mod_perl by eliminating VirtualHost duplication for SSL. mod_perl configuration files can be plenty difficult without the mod_ssl overhead.

Also, assuming that your frontend machine is underworked anyway, especially if you run a high-volume web service deploying a cluster of machines to serve requests, you will save some CPU, as it's known that SSL connections are about 100 times more CPU-intensive than non-SSL connections.

Of course, caching session keys so you don't have to set up a new symmetric key for every single connection improves the situation. If you use the shared-memory session-caching mechanism that mod_ssl supports, the overhead is actually rather small, except for the initial connection.

But then, on the other hand, why even bother to run a full-scale mod_ssl-enabled server in front? You might as well just choose a small tunnel/port-forwarding application such as Stunnel or one of the many others mentioned at https://www.openssl.org/related/apps.html.

Of course, if you do heavy SSL processing, ideally you should really be offloading it to a dedicated cryptography server. But this advice can be misleading, based on the current status of crypto hardware. If you use hardware, you get extra speed now, but you're locked into a proprietary solution; in six months or a year software will have caught up with whatever hardware you're using, and because software is easier to adapt, you'll have more freedom to change whatever software you're using and more control of things. So the choice is in your hands.
