5.5. Diagnosing Problems

The Enterprise Security Client includes basic diagnostic tools and a simple interface to log errors and common events, such as inserting and removing a smart card or changing the card's password. The diagnostic tools can identify and notify users about problems with the Enterprise Security Client, smart cards, and TPS connections.
To open the Diagnostics Information window:
  1. Open the Enterprise Security Client.
  2. Select the smart card to check from the list.
  3. Click the Diagnostics button.

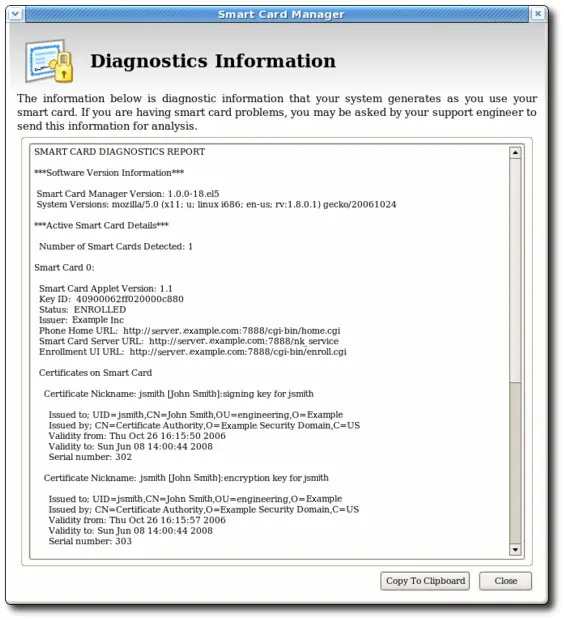

  4. This opens the Diagnostic Information window for the selected smart card.
The Diagnostics Information screen displays the following information:
  • The Enterprise Security Client version number.
  • The version information for the Xulrunner framework upon which the client is running.
  • The number of cards detected by the Enterprise Security Client.
For each card detected, the following information is displayed:
  • The version of the applet running on the smart card.
  • The alpha-numeric ID of the smart card.
  • The card's status, which can be any of the three things:
    • NO_APPLET No key was detected.
    • UNINITIALIZED. The key was detected, but no certificates have been enrolled.
    • ENROLLED. The detected card has been enrolled with certificate and card information.
  • The card's Phone Home URL. This is the URL from which all Phone Home information is obtained.
  • The card issuer name, such as Example Corp.
  • The card's answer-to-reset (ATR) string. This is a unique value that can be used to identify different classes of smart cards. For example:
  • The TPS Phone Home URL.
  • The TPS server URL. This is retrieved through Phone Home.
  • The TPS enrollment form URL. This is retrieved through Phone Home.
  • Detailed information about each certificate contained on the card.
  • A running log of the most recent Enterprise Security Client errors and common events.
The Enterprise Security Client records two types of diagnostic information. It records errors that are returned by the smart card, and it records events that have occurred through the Enterprise Security Client. It also returns basic information about the smart card configuration.

5.5.1. Errors

  • The Enterprise Security Client does not recognize a card.
  • Problems occur during a smart card operation, such as a certificate enrollment, password reset, or format operation.
  • The Enterprise Security Client loses the connection to the smart card. This can happen when problems occur communicating with the PCSC daemon.
  • The connection between the Enterprise Security Client and TPS is lost.
Smart cards can report certain error codes to the TPS; these are recorded in the TPS's tps-debug.log or tps-error.log files, depending on the cause for the message.
Table 5.1. Smart Card Error Codes
Return Code Description
General Error Codes
6400 No specific diagnosis
6700 Wrong length in Lc
6982 Security status not satisfied
6985 Conditions of use not satisfied
6a86 Incorrect P1 P2
6d00 Invalid instruction
6e00 Invalid class
Install Load Errors
6581 Memory Failure
6a80 Incorrect parameters in data field
6a84 Not enough memory space
6a88 Referenced data not found
Delete Errors
6200 Application has been logically deleted
6581 Memory failure
6985 Referenced data cannot be deleted
6a88 Referenced data not found
6a82 Application not found
6a80 Incorrect values in command data
Get Data Errors
6a88 Referenced data not found
Get Status Errors
6310 More data available
6a88 Referenced data not found
6a80 Incorrect values in command data
Load Errors
6581 Memory failure
6a84 Not enough memory space
6a86 Incorrect P1/P2
6985 Conditions of use not satisfied

5.5.2. Events

  • Simple events such as card insertions and removals, successfully completed operations, card operations that result in an error, and similar events.
  • Errors are reported from the TPS to the Enterprise Security Client.
  • The NSS crypto library is initialized.
  • Other low-level smart card events are detected.
