Solaris Containers: Resource Management and Solaris Zones Developer's Guide
Previous Next

Resource Controls Flags and Actions

This section describes flags, actions, and signals associated with resource controls.

rlimit, Resource Limit

rlimit is process-based. rlimit establishes a restricting boundary on the consumption of a variety of system resources by a process. Each process that the process creates inherits from the original process. A resource limit is defined by a pair of values. The values specify the current (soft) limit and the maximum (hard) limit.

A process might irreversibly lower its hard limit to any value that is greater than or equal to the soft limit. Only a process with superuser ID can raise the hard limit. See setrlimit() and getrlimit().

The rlimit structure contains two members that define the soft limit and hard limit.

rlim_t     rlim_cur;       /* current (soft) limit */
rlim_t     rlim_max        /* hard limit */

rctl, Resource Control

rctl extends the process-based limits of rlimit by controlling resource consumption by processes, tasks, and projects defined in the project database.


Note - The rctl mechanism is preferred to the use of rlimit to set resource limits. The only reason to use the rlimit facility is when portability is required across UNIX platforms.


Applications fall into the following broad categories depending on how an application deals with resource controls. Based on the action that is taken, resource controls can be further classified. Most report an error and terminate operation. Other resource controls allow applications to resume operation and adapt to the reduced resource usage. A progressive chain of actions at increasing values can be specified for each resource control.

The list of attributes for a resource control consists of a privilege level, a threshold value, and an action that is taken when the threshold is exceeded.

Resource Control Values and Privilege Levels

Each threshold value on a resource control must be associated with one of the following privilege levels:

RCPRIV_BASIC

Privilege level can be modified by the owner of the calling process. RCPRIV_BASIC is associated with a resource's soft limit.

RCPRIV_PRIVILEGED

Privilege level can be modified only by privileged (superuser) callers. RCPRIV_PRIVILEGED is associated with a resource's hard limit.

RCPRIV_SYSTEM

Privilege level remains fixed for the duration of the operating system instance.

Figure 5-2 shows the timeline for setting privilege levels for signals that are defined by the /etc/project file process.max-cpu-time resource control.

Local Actions and Local Flags

The local action and local flags are applied to the current resource control value represented by this resource control block. Local actions and local flags are value-specific. For each threshold value that is placed on a resource control, the following local actions and local flags are available:

RCTL_LOCAL_NOACTION

No local action is taken when this resource control value is exceeded.

RCTL_LOCAL_SIGNAL

The specified signal, set by rctlblk_set_local_action(), is sent to the process that placed this resource control value in the value sequence.

RCTL_LOCAL_DENY

When this resource control value is encountered, the request for the resource is denied. Set on all values if RCTL_GLOBAL_DENY_ALWAYS is set for this control. Cleared on all values if RCTL_GLOBAL_DENY_NEVER is set for this control.

RCTL_LOCAL_MAXIMAL

This resource control value represents a request for the maximum amount of resource for this control. If RCTL_GLOBAL_INFINITE is set for this resource control, RCTL_LOCAL_MAXIMAL indicates an unlimited resource control value that is never exceeded.

Global Actions and Global Flags

Global flags apply to all current resource control values represented by this resource control block. Global actions and global flags are set by rctladm(1M). Global actions and global flags cannot be set with setrctl(). Global flags apply to all resource controls. For each threshold value that is placed on a resource control, the following global actions and global flags are available:

RCTL_GLOBAL_NOACTION

No global action is taken when a resource control value is exceeded on this control.

RCTL_GLOBAL_SYSLOG

A standard message is logged by the syslog() facility when any resource control value on a sequence associated with this control is exceeded.

RCTL_GLOBAL_SECONDS

Defines the unit string of the limit value as seconds.

RCTL_GLOBAL_COUNT

Defines the unit string of the limit value as count.

RCTL_GLOBAL_BYTES

Defines the unit string of the limit value as bytes.

RCTL_GLOBAL_SYSLOG_NEVER

Flag means that RCTL_GLOBAL_SYSLOG cannot be set for this resource control through rctladm(1M).

RCTL_GLOBAL_NOBASIC

No values with the RCPRIV_BASIC privilege are permitted on this control.

RCTL_GLOBAL_LOWERABLE

Non-privileged callers are able to lower the value of privileged resource control values on this control.

RCTL_GLOBAL_DENY_ALWAYS

The action that is taken when a control value is exceeded on this control always includes denial of the resource.

RCTL_GLOBAL_DENY_NEVER

The action that is taken when a control value is exceeded on this control always excludes denial of the resource. The resource is always granted, although other actions can also be taken.

RCTL_GLOBAL_FILE_SIZE

The valid signals for local actions include the SIGXFSZ signal.

RCTL_GLOBAL_CPU_TIME

The valid signals for local actions include the SIGXCPU signal.

RCTL_GLOBAL_SIGNAL_NEVER

No local actions are permitted on this control. The resource is always granted.

RCTL_GLOBAL_INFINITE

This resource control supports the concept of an unlimited value. Generally, an unlimited value applies only to accumulation-oriented resources, such as CPU time.

RCTL_GLOBAL_UNOBSERVABLE

Generally, a task or project related resource control does not support observational control values. An RCPRIV_BASIC privileged control value placed on a task or process generates an action only if the value is exceeded by the process that placed the value.

Resource Control Sets Associated With a Project, Processes, and Tasks

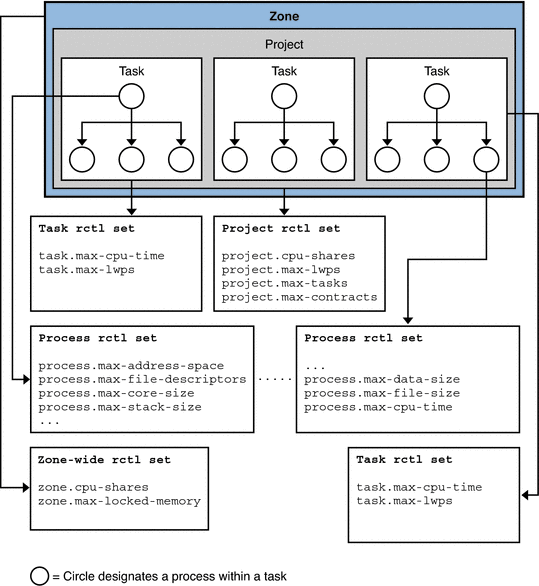

The following figure shows the resource control sets associated with tasks, processes and a project.

Figure 5-1 Resource Control Sets for Task, Project, and Process
represents resource control sets for a task, project, and processes.

More than one resource control can exist on a resource, each resource control at a containment level in the process model. Resource controls can be active on the same resource for both a process and collective task or collective project. In this case, the action for the process takes precedence. For example, action is taken on process.max-cpu-time before task.max-cpu-time if both controls are encountered simultaneously.

Resource Controls Associated With a Project

Resource controls associated with a project include the following:

project.cpu-cap

Absolute limit on the amount of CPU resources that can be consumed by a project. A value of 100 means 100 percent of one CPU as the project.cpu-cap setting. A value of 125 is 125 percent, because 100 percent corresponds to one full CPU on the system when using CPU caps.

project.cpu-shares

The number of CPU shares that are granted to this project for use with the fair share scheduler, FSS(7).

project.max-crypto-memory

Total amount of kernel memory that can be used by libpkcs11 for hardware crypto acceleration. Allocations for kernel buffers and session-related structures are charged against this resource control.

project.max-locked-memory

Total amount of physical locked memory allowed.

Note that this resource control replaced project.max-device-locked-memory, which has been removed.

project.max-msg-ids

Maximum number of System V message queues allowed for a project.

project.max-port-ids

Maximum allowable number of event ports.

project.max-sem-ids

Maximum number of semaphore IDs allowed for a project.

project.max-shm-ids

Maximum number of shared memory IDs allowed for this project.

project.max-msg-ids

Maximum number of message queue IDs allowed for this project.

project.max-shm-memory

Total amount of System V shared memory allowed for this project.

project.max-lwps

Maximum number of LWPs simultaneously available to this project.

project.max-tasks

Maximum number of tasks allowable in this project.

project.max-contracts

Maximum number of contracts allowed in this project.

Resource Controls Associated With Tasks

Resource controls associated with tasks include the following:

task.max-cpu-time

Maximum CPU time (seconds) available to this task's processes.

task.max-lwps

Maximum number of LWPs simultaneously available to this task's processes.

Resource Controls Associated With Processes

Resource controls associated with processes include the following:

process.max-address-space

Maximum amount of address space (bytes), as summed over segment sizes, available to this process.

process.max-core-size

Maximum size (bytes) of a core file that is created by this process.

process.max-cpu-time

Maximum CPU time (seconds) available to this process.

process.max-file-descriptor

Maximum file descriptor index that is available to this process.

process.max-file-size

Maximum file offset (bytes) available for writing by this process.

process.max-msg-messages

Maximum number of messages on a message queue. This value is copied from the resource control at msgget() time.

process.max-msg-qbytes

Maximum number (bytes) of messages on a message queue. This value is copied from the resource control at msgget() time.When you set a new project.max-msg-qbytes value, initialization occurs only on the subsequently created values. The new project.max-msg-qbytes value does not effect existing values.

process.max-sem-nsems

Maximum number of semaphores allowed for a semaphore set.

process.max-sem-ops

Maximum number of semaphore operations that are allowed for a semop() call. This value is copied from the resource control at msgget() time.A new project.max-sem-ops value only affects the initialization of subsequently created values and has no effect on existing values.

process.max-port-events

Maximum number of events that are allowed per event port.

Zone-Wide Resource Controls

Zone-wide resource controls are available on a system with zones installed. Zone-wide resource controls limit the total resource usage of all process entities within a zone.

zone.cpu-cap

Absolute limit on the amount of CPU resources that can be consumed by a non-global zone. A value of 100 means 100 percent of one CPU as the project.cpu-cap setting. A value of 125 is 125 percent, because 100 percent corresponds to one full CPU on the system when using CPU caps.

zone.cpu-shares

Limit on the number of fair share scheduler (FSS) CPU shares for a zone. The scheduling class must be FSS. CPU shares are first allocated to the zone, and then further subdivided among projects within the zone as specified in the project.cpu-shares entries. A zone with a higher number of zone.cpu-shares is allowed to use more CPU than a zone with a low number of shares.

zone.max-locked-memory

Total amount of physical locked memory available to a zone.

zone.max-lwps

Maximum number of LWPs simultaneously available to this zone

zone.max-msg-ids

Maximum number of message queue IDs allowed for this zone

zone.max-sem-ids

Maximum number of semaphore IDs allowed for this zone

zone.max-shm-ids

Maximum number of shared memory IDs allowed for this zone

zone.max-shm-memory

Total amount of shared memory allowed for this zone

zone.max-swap

Total amount of swap that can be consumed by user process address space mappings and tmpfs mounts for this zone.

For information on configuring zone-wide resource controls, see Chapter 17, Non-Global Zone Configuration (Overview), in System Administration Guide: Solaris Containers-Resource Management and Solaris Zones and Chapter 18, Planning and Configuring Non-Global Zones (Tasks), in System Administration Guide: Solaris Containers-Resource Management and Solaris Zones. Note that it is possible to use the zonecfg command to apply a zone-wide resource control to the global zone on a system with non-global zones installed.

Signals Used With Resource Controls

For each threshold value that is placed on a resource control, the following restricted set of signals is available:

SIGBART

Terminate the process.

SIGXRES

Signal generated by resource control facility when the resource control limit is exceeded.

SIGHUP

When carrier drops on an open line, the process group that controls the terminal is sent a hangup signal, SIGHUP.

SIGSTOP

Job control signal. Stop the process. Stop signal not from terminal.

SIGTERM

Terminate the process. Termination signal sent by software.

SIGKILL

Terminate the process. Kill the program.

SIGXFSX

Terminate the process. File size limit exceeded. Available only to resource controls with the RCTL_GLOBAL_FILE_SIZE property.

SIGXCPU

Terminate the process. CPU time limit exceeded. Available only to resource controls with the RCTL_GLOBAL_CPUTIME property.

Other signals might be permitted due to global properties of a specific control.


Note - Calls to setrctl() with illegal signals fail.

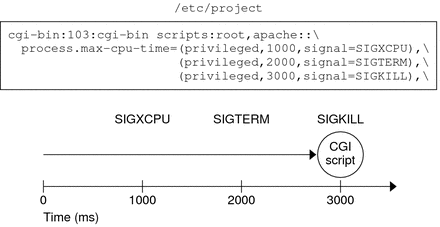

Figure 5-2 Setting Privilege Levels for Signals
setting privilege levels for signals
