Microsoft Office to OpenOffice Migration Guide
Previous Page Home Next Page

Number recognition

Number recognition is where the user types in a “number” and the format of the cell changes accordingly. The same thing applies to text copied from outside Calc and pasted into a spreadsheet.

Rather than compare and contrast Excel with Calc, this section outlines how number recognition works in Calc (which is slightly different from Excel).

Number recognition is dependent on locale. To set the default locale for OOo, use Tools > Options > Language Settings > Languages.

To set the locale for particular cells, select the cells, right-click, and select Format > Cells > Numbers tab > Language.

Default cell formats

The default cell formats are given in Table 4. To determine the default for a locale:

  1. Select a cell that has not been formatted.

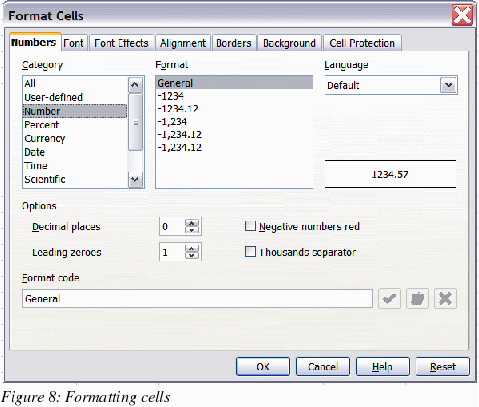

  2. Select Format > Cells > Numbers tab (see Figure 8).

  3. Click on the desired category.

  4. Look for the default named in the Format and Format codes portion of the dialog.

Frame3

Table 4. Default cell formats for different categories of cell formats.

Category

Default format

Format changed when input is different category?

Number

General

Yes

Date

Two defaults based on locale, one for date only and another for date and time.

Yes

Time

Default for the locale

Yes

Boolean

TRUE or FALSE

Yes

Percentage

0.00%

No

Currency

Default for the locale

No

Scientific

0.00E+000

No

Fraction

# ?/?

No

Input category

The input category is determined as shown in the following table.

Table 5: Input categories

Category

Nature of input

Examples
(based on USA locale)

Function or formula

Starts with an equals sign.

=A1+A2 or

=SUM(A2:A10)

Boolean

True or false (case does not matter)

True or

FALSE

Number

Digits only with optional decimal separator, optional thousands separator, negative numbers expressed with either a negative sign at either end or enclosed by brackets.

1, 1.1, -1, (1)

1,123, -123.1

Percentage

Same as for number but has a % at right end.

1%, -1%, (1)% 1.1% , 0.1%

Currency

Same as for Number but with the locale’s currency symbol at either end.

$1, 1$, $(1), (1)$, $1.1

Scientific

Same as for Number but can have E (case does not matter) and then a power of ten.

1e1, 1E1, -1e1, (1e1), (1e-1), (1.2e1)

Fraction

Optional negative sign, some digits, a space, some digits, a slash, some digits.

1 1/2, -1 2/3

Time

One or two digits, time separator for locale, one or two digits, optional time separator for locale, optional decimal separator for locale, more digits.

10:40, 1:30

Date

Most representations of dates. If the year is not given, it is interpreted as being the current year, if the digits for century are not given, it is determined by the settings in Tools > Options > OpenOffice.org > General. If the numbers given are not valid for the locale, then input is interpreted as text. Examples include: one or two digits, date separator for locale, one or two digits (1/1); three sets of digits separated by decimal separator (1.1.1); textual representations (1 Feb).

1/1, 1/1/5, 1.1.5,

1 Feb, 1 Jan,

1 January

1 January 05

Date and time

Input is in the form of (date) digits, date separator for locale, a space, digits with time separator for locale. As for dates, the numbers must be valid for the locale.

1/1/5 10:30

Text

Anything that does not meet the above criteria.

28/28

Changing the cell’s format based on input

Calc works as follows:

  1. First a category is worked out for the input.

  2. If the input is a function and the current cell’s format is a default, that is, not explicitly defined, then the cell’s format is determined by the hierarchy of the inputs to the function. The order is dates, time, currency, percentage, scientific, fractions, and numbers unless an input to a function is returning a value of a different type. Some examples of this last exception:

    • A date plus a number returns a date, because date supersedes number in the hierarchy.

    • A function like =Month() returns a number even though a date is used as the input.

else:

  • If the input category is boolean, then the cell’s format is changed to boolean. If the input category is text, then the cell’s format does not change.

    else:

  • If the cell format is Number–general, Date–default, Time–default, or boolean, and the category of input belongs to a different category, then the cell’s format is changed to the default for the input category.

    Pasting values

    A consequence is that, when copying text that contains dates and pasting into a Calc spreadsheet, you can determine what the result is going to be. Suppose your default locale is USA where the default date format is MM/DD/YY and the data that you are copying is in the format DD/MM/YY (the European default). If you set the format of the cells that you are going to paste the data into to date format DD/MM/YY, the dates will be correctly interpreted; if you do not, it will not. You can then change the format of the cells to MM/DD/YY to display the dates in USA format.
