21.5.1. Locating and Correcting Syntax Errors

Don't Skimp on the Semicolons Even at the end of a { } block, where a semicolon is not required at the end of the last statement, it may be better to put one in: there is a chance that you will add more code later, and when you do you might forget to add the now-required semicolon. Similarly, more items might be added later to a list; unlike many other languages, Perl has no problem when you end a list with a redundant comma.

panic% perl -c test.pl

When checking syntax in this way it's also a good idea to add the -w switch to enable warnings:

panic% perl -cw test.pl

If there are errors in the code, Perl will report the errors and tell you at which line numbers in your script the errors were found. For example, if we create a file test.pl with the contents:

@list = ('foo' 'bar');

and do syntax validation from the command line:

panic% perl -cw test.pl
String found where operator expected at
      test.pl line 1, near "'foo' 'bar'"
  (Missing operator before  'bar'?)
syntax error at test.pl line 1, near "'foo' 'bar'"
test.pl had compilation errors.

we can learn from the error message that we are missing an operator before the 'bar' string, which is of course a comma in this case. If we place the missing comma between the two strings:

@list = ('foo', 'bar');

and run the test again:

panic% perl -cw test.pl
Name "main::list" used only once: possible typo at test.pl line 1.
test.pl syntax OK

we can see that the syntax is correct now. But Perl still warns us that we have some variable that is defined but not used. Is this a bug? Yes and no—it's what we really meant in this example, but our example doesn't actually do anything, so Perl is probably right to complain.

The next step is to execute the script, since in addition to syntax errors there may be runtime errors. These are usually the errors that cause the "Internal Server Error" response when a page is requested by a client's browser. With plain CGI scripts (running under mod_cgi) it's the same as running plain Perl scripts—just execute them and see if they work.

The whole thing is quite different with scripts that use Apache::* modules. These can be used only from within the mod_perl server environment. Such scripts rely on other code, and an environment that isn't available if you attempt to execute the script from the shell. There is no Apache request object available to the code when it is executed from the shell.

21.5.2. Using Apache::FakeRequest to Debug Apache Perl Modules

Subroutines for Apache constants are also defined so that you can use Apache::Constants while debugging, although the values of the constants are hardcoded rather than extracted from the Apache source code.

You cannot debug this module unless you configure the server to run it, by calling its handler from somewhere. So, for example, you could put in httpd.conf:

<Location /ex>
    SetHandler perl-script
    PerlHandler Book::Example
</Location>

Then, after restarting the server, you could start a browser, request the location http://localhost/ex, and examine the output. Tedious, no?

When you execute the script from the command line, you will see the following output as the body of the response:

You are OK www.example.com

As you can see, when Apache::FakeRequest was initialized, we hardcoded the Apache method get_remote_host( ) with a static value.

At the time of this writing, Apache::FakeRequest is far from being complete, but you may still find it useful.

If while developing your code you have to switch back and forth between the normal and fake modes, you may want to start your code in this way:

use constant MOD_PERL => $ENV{MOD_PERL};

my $r;

if (MOD_PERL) {
    $r = Apache->request;
} else {
    require Apache::FakeRequest;
    $r = Apache::FakeRequest->new;
}

When you run from the command line, the fake request will be used; otherwise, the usual method will be used.

21.5.3. Using print( ) for Debugging

However, it is rather difficult to anticipate all the possible directions a program might take and what data might cause trouble. In addition, inline debugging code tends to add bloat and degrade the performance of an application and can also make the code harder to read and maintain. Furthermore, you have to comment out or remove the debugging print( ) calls when you think that you have solved the problem, and if later you discover that you need to debug the same code again, you need at best to uncomment the debugging code lines or, at worst, to write them again from scratch.

package Foo;
use constant DEBUG => 1;
...
warn "entering foo" if DEBUG;
...

The warning will be printed, since DEBUG returns true. In production you just have to turn off the constant:

use constant DEBUG => 0;

When the code is compiled with a false DEBUG value, all those statements that are to be executed if DEBUG has a true value will be removed on the fly at compile time, as if they never existed. This allows you to keep some of the important debug statements in the code without any adverse impact on performance.

But what if you have many different debug categories and you want to be able to turn them on and off as you need them? In this case, you need to define a constant for each category. For example:

use constant DEBUG_TEMPLATE => 1;
use constant DEBUG_SESSION  => 0;
use constant DEBUG_REQUEST  => 0;

Now if in your code you have these three debug statements:

warn "template" if DEBUG_TEMPLATE;
warn "session"  if DEBUG_SESSION;
warn "request"  if DEBUG_REQUEST;

only the first one will be executed, as it's the only one that has a condition that evaluates to true.

Let's look at a few examples where we use print( ) to debug some problem.

This code is pretty straightforward. We get today's date and subtract 1 from the value of the day we get, updating the month and the year on the way if boundaries are being crossed (end of month, end of year). If we do it seven times in a loop, at the end we should get a date from a week ago.

Note that since localtime( ) returns the year as a value of current_year-1900 (which means that we don't have a century boundary to worry about), if we are in the middle of the first week of the year 2000, the value of $year returned by localtime( ) will be 100 and not 0, as one might mistakenly assume. So when the code does $year-- it becomes 99, not -1. At the end, we add 1900 to get back the correct four-digit year format. (If you plan to work with years before 1900, add 1900 to $year before the for loop.)

Also note that we have to account for leap years, where there are 29 days in February. For the other months, we have prepared an array containing the month lengths. A specific year is a leap year if it is either evenly divisible by 400 or evenly divisible by 4 and not evenly divisible by 100. For example, the year 1900 was not a leap year, but the year 2000 was a leap year. Logically written:

print ($year % 400 =  = 0 or ($year % 4 =  = 0 and $year % 100))
      ? 'Leap' : 'Not Leap';

Now when we run the script and check the result, we see that something is wrong. For example, if today is 10/23/1999, we expect the above code to print 10/16/1999. In fact, it prints 09/16/1999, which means that we have lost a month. The above code is buggy!

Let's put a few debug print( ) statements in the code, near the $month variable:

sub date_a_week_ago {

    my @month_len = (31, 28, 31, 30, 31, 30, 31, 31, 30, 31, 30, 31);
    my($day, $month, $year) = (localtime)[3..5];
    print "[set] month : $month\n"; # DEBUG

    for (my $j = 0; $j < 7; $j++) {

        $day--;
        if ($day =  = 0) {

            $month--;
            if ($month =  = 0) {
                $year--;
                $month = 12;
            }
            print "[loop $i] month : $month\n"; # DEBUG

            # there are 29 days in February in a leap year
            $month_len[1] =
                ($year % 400 =  = 0 or ($year % 4 =  = 0 and $year % 100))
                    ? 29 : 28;

        # set $day to be the last day of the previous month
            $day = $month_len[$month - 1];
        }
    }

    return sprintf "%02d/%02d/%04d", $month, $day, $year+1900;
}

When we run it we see:

[set] month : 9

This is supposed to be the number of the current month (10). We have spotted a bug, since the only code that sets the $month variable consists of a call to localtime( ). So did we find a bug in Perl? Let's look at the manpage of the localtime( ) function:

panic% perldoc -f localtime

Converts a time as returned by the time function to a 9-element array with the time
analyzed for the local time zone.  Typically used as follows:

  #  0    1    2     3     4    5     6     7     8
  ($sec,$min,$hour,$mday,$mon,$year,$wday,$yday,$isdst) = localtime(time);

All array elements are numeric, and come straight out of a struct tm.  In particular
this means that $mon has the range 0..11 and $wday has the range 0..6 with Sunday as
day 0.  Also, $year is the number of years since 1900, that is, $year is 123 in year
2023, and not simply the last two digits of the year.  If you assume it is, then you
create non-Y2K-compliant programs--and you wouldn't want to do that, would you?
[more info snipped]

This reveals that if we want to count months from 1 to 12 and not 0 to 11 we are supposed to increment the value of $month. Among other interesting facts about localtime( ), we also see an explanation of $year, which, as we've mentioned before, is set to the number of years since 1900.

We have found the bug in our code and learned new things about localtime( ). To correct the above code, we just increment the month after we call localtime( ):

my($day, $month, $year) = (localtime)[3..5];
$month++;

Other places where programmers often make mistakes are conditionals and loop statements. For example, will the block in this loop:

my $c = 0;
for (my $i=0; $i <= 3; $i++) {
    $c += $i;
}

be executed three or four times?

If we plant the print( ) debug statement:

my $c = 0;
for (my $i=0; $i <= 3; $i++) {
    $c += $i;
    print $i+1,"\n";
}

and execute it:

1
2
3
4

we see that it gets executed four times. We could have figured this out by inspecting the code, but what happens if instead of 3, there is a variable whose value is known only at runtime? Using debugging print( )statements helps to determine whether to use < or <= to get the boundary condition right.

Using idiomatic Perl makes things much easier:

panic% perl -le 'my $c=0; $c += $_, print $_+1 for 0..3;'

Here you can plainly see that the loop is executed four times.

The same goes for conditional statements. For example, assuming that $a and $b are integers, what is the value of this statement?

$c = $a > $b and $a < $b ? 1 : 0;

One might think that $c is always set to zero, since:

$a > $b and $a < $b

is a false statement no matter what the values of $a and $b are. But C$ is not set to zero—it's set to 1 (a true value) if $a > $b; otherwise, it's set to undef (a false value). The reason for this behavior lies in operator precedence. The operator and (AND) has lower precedence than the operator = (ASSIGN); therefore, Perl sees the statement like this:

($c = ($a > $b) ) and ( $a < $b ? 1 : 0 );

which is the same as:

if ($c = $a > $b) {
    $a < $b ? 1 : 0;
}

So the value assigned to $c is the result of the logical expression:

$a > $b

Adding some debug printing will reveal this problem. The solutions are, of course, either to use parentheses to explicitly express what we want:

$c = ($a > $b and $a < $b) ? 1 : 0;

or to use a higher-precedence AND operator:

$c = $a > $b && $a < $b ? 1 : 0;

21.5.4. Using print( ) and Data::Dumper for Debugging

$data = {
    array => [qw(apple banana clementine damson)],
    hash  => {
        food => "vegetables",
        drink => "juice",
    },
};

how do we print it out? Very easily:

use Data::Dumper;
print Dumper $data;

What we get is a pretty-printed $data:

$VAR1 = {
          'hash' => {
                      'food' => 'vegetables',
                      'drink' => 'juice'
                    },
          'array' => [
                      'apple',
                      'banana',
                      'clementine',
                      'damson'
                     ]
        };

Suppose while writing this example we made a mistake and wrote:

array => qw(apple banana clementine damson),

instead of:

array => [qw(apple banana clementine damson)],

When we pretty-printed the contents of $data we would immediately see our mistake:

$VAR1 = {
          'banana' => 'clementine',
          'damson' => 'hash',
          'HASH(0x80cd79c)' => undef,
          'array' => 'apple'
        };

That's not what we want—we have spotted the bug and can easily correct it.

You can use:

print STDERR Dumper $data;

or:

warn Dumper $data;

instead of printing to STDOUT, to have all the debug messages in the error_log file. This makes it even easier to debug your code, since the real output (which should normally go to the browser) is not mixed up with the debug output when the code is executed under mod_perl.

21.5.5. The Importance of a Good, Concise Coding Style

The "one week ago" example from the previous section is not concise. There is a lot of redundancy in it, and as a result it is harder to debug than it needs to be. Here is a condensed version of the main loop:

for (0..6) {
    next if --$day;
    $year--, $month=12 unless --$month;
    $day = $month != 2
        ? $month_len[$month-1]
        : ($year % 400 =  = 0 or ($year % 4 =  = 0 and $year % 100))
            ? 29
            : 28;
}

This version may seem quite difficult to understand and even harder to maintain, but for those who are used to reading idiomatic Perl, part of this code is easier to understand.

Larry Wall, the author of Perl, is a linguist. He tried to define the syntax of Perl in a way that makes working in Perl much like working in English. So it's a good idea to learn Perl's coding idioms—some of them might seem odd at first, but once you get used to them, you will find it difficult to understand how you could have lived without them. We'll present just a few of the more common Perl coding idioms here.

You should try to write code that is readable and avoids redundancy. For example, it's better to write:

unless ($i) {...}

than:

if ($i =  = 0) {...}

if you want to just test for truth.

Use a concise, Perlish style:

for my $j (0..6) {...}

instead of the syntax used in some other languages:

for (my $j=0; $j<=6; $j++) {...}

It's much simpler to write and comprehend code like this:

print "something" if $debug;

than this:

if ($debug) {
    print "something";
}

A good style that improves understanding and readability and reduces the chances of having a bug is shown below, in the form of yet another rewrite of our "one week ago" code:

for (0..6) {
    $day--;
    next if $day;

    $month--;
    unless ($month){
        $year--;
        $month=12
    }

    if($month =  = 2){ # February
        $day = ($year % 400 =  = 0 or ($year % 4 =  = 0 and $year % 100))
             ? 29 : 28;
    } else {
        $day = $month_len[$month-1];
    }
}

This is a happy medium between the excessively verbose style of the first version and the very obscure second version.

After debugging this obscure code for a while, we came up with a much simpler two-liner, which is much faster and easier to understand:

sub date_a_week_ago {
    my($day, $month, $year) = (localtime(time-7*24*60*60))[3..5];
    return sprintf "%02d/%02d/%04d", $month+1, $day, $year+1900;
}

Why is the last version important, when the first one works just fine? Not because of performance issues (although this last one is twice as fast as the first), but because there are more chances to have a bug in the first version than there are in the last one.

use Date::Calc;
sub date_a_week_ago {
    my($year,$month,$day) =
        Date::Calc::Add_Delta_Days(Date::Calc::Today, -7);
    return sprintf "%02d/%02d/%04d", $month, $day, $year;
}

We simply use Date::Calc::Today( ), which returns a list of three values—year, month, and day—which are immediately fed into the function Date::Calc::Add_Delta_Days( ). This allows us to get the date N days from now in either direction. We use -7 to ask for a date from one week ago. Since we are relying on this standard CPAN module, there is not much to debug here; the function has no complicated logic where one can expect bugs. In contrast, our original implementation was really difficult to understand, and it was very easy to make mistakes.

21.5.6. Introduction to the Perl Debugger

As we saw earlier, it's almost always possible to debug code with the help of print( ). However, it is impossible to anticipate all the possible paths of execution through a program, and difficult to know what code to suspect when trouble occurs. In addition, inline debugging code tends to add bloat and degrade the performance of an application, although most applications offer inline debugging as a compile-time option to avoid these performance hits. In any case, this information tends to be useful only to the programmer who added the print( )statements in the first place.

Sometimes you must debug tens of thousands of lines of Perl in an application, and while you may be a very experienced Perl programmer who can understand Perl code quite well just by looking at it, no mere mortal can even begin to understand what will actually happen in such a large application until the code is running. So to begin with you just don't know where to add your trusty print( )statements to see what is happening inside.

• Stop at a certain point in the code, based on a routine name or source file and line number (this point is called a break point).

• Stop at a certain point in the code, based on conditions such as the value of a given variable (this is called a conditional break point).

• Perform an action without stopping, based on the criteria above.

• View and modify the values of variables at any time.

• Provide context information such as stack traces and source views.

It takes practice to learn the most effective ways of using an interactive debugger, but the time and effort will be paid back many times in the long run.

It might be useful to keep the perldebug manpage handy for reference while reading this section, and for future debugging sessions on your own.

The interactive debugger will attach to the current terminal and present you with a prompt just before the first program statement is executed. For example:

panic% perl -d -le 'print "mod_perl rules the world"'

Loading DB routines from perl5db.pl version 1.0402

Emacs support available.

Enter h or `h h' for help.

main::(-e:1):   print "mod_perl rules the world"
  DB<1>

main::(-e:1):   print "mod_perl rules the world"
  DB<1> n
mod_perl rules the world
Debugged program terminated.  Use q to quit or R to restart,
use O inhibit_exit to avoid stopping after program termination,
h q, h R or h O to get additional info.
DB<1>

In this case, our example code is only one line long, so we have finished interacting after the first line of code is executed. Let's try again with a slightly longer example:

my $word = 'mod_perl';
my @array = qw(rules the world);

print "$word @array\n";

Save the script in a file called domination.pl and run it with the -d switch:

panic% perl -d domination.pl

main::(domination.pl:1):      my $word = 'mod_perl';
  DB<1> n
main::(domination.pl:2):      my @array = qw(rules the world);
  DB<1>

At this point, the first line of code has been executed and the variable $word has been assigned the value mod_perl. We can check this by using the p (print) command:

main::(domination.pl:2):      my @array = qw(rules the world);
  DB<1> p $word
mod_perl

  DB<2> n
main::(domination.pl:4):      print "$word @array\n";
  DB<2> p @array
rulestheworld
  DB<3> n
mod_perl rules the world
Debugged program terminated.  Use q to quit or R to restart,
use O inhibit_exit to avoid stopping after program termination,
h q, h R or h O to get additional info.

If you type:

print "@array";

the output will be rules the world, since the default value of the $" variable is a single space.

You should have noticed by now that there is some valuable information to the left of each executable statement:

main::(domination.pl:4):      print "$word @array\n";
  DB<2>

First is the current package name (in this case, main::). Next is the current filename and statement line number (domination.pl and 4, in this example). The number presented at the prompt is the command number, which can be used to recall commands from the session history, using the ! command followed by this number. For example, !1 would repeat the first command:

panic% perl -d -e0

main::(-e:1):   0
  DB<1> p $]
5.006001
  DB<2> !1
p $]5.006001
  DB<3>

where $] is Perl's version number. As you can see, !1 prints the value of $], prepended by the command that was executed.

Notice that the code given to Perl to debug (with -e) was 0—i.e., a statement that does nothing. To use Perl as a calculator, and to experiment with Perl expressions, it is common to enter perl -de0, and then type in expressions and p (print) their results.

Now let's debug it:

panic% perl -d test_sym.pl

main::(test_sym.pl:3):      my $sym = Symbol::gensym( );
  DB<1> n
main::(test_sym.pl:5):      print "$sym\n";
  DB<1> n
GLOB(0x80c7a44)

panic% perl -d test_sym.pl

main::(test_sym.pl:3):      my $sym = Symbol::gensym( );
  DB<1> s
Symbol::gensym(/usr/lib/perl5/5.6.1/Symbol.pm:86):
86:         my $name = "GEN" . $genseq++;
  DB<1>

Notice the source line information has changed to the Symbol::gensym package and the Symbol.pm file. We can carry on by hitting the Return key at each prompt, which causes the debugger to repeat the last step or next command. It won't repeat a print command, though. The debugger will eventually return from the subroutine back to our main program:

  DB<1>
Symbol::gensym(/usr/lib/perl5/5.6.1/Symbol.pm:87):
87:         my $ref = *{$genpkg . $name};
  DB<1>
Symbol::gensym(/usr/lib/perl5/5.6.1/Symbol.pm:88):
88:         delete $$genpkg{$name};
  DB<1>
Symbol::gensym(/usr/lib/perl5/5.6.1/Symbol.pm:89):
89:         $ref;
  DB<1>
main::(test_sym.pl:5):      print "$sym\n";
  DB<1>
GLOB(0x80c7a44)

Our line-by-line debugging approach has served us well for this small program, but imagine the time it would take to step through a large application at the same pace. There are several ways to speed up a debugging session, one of which is known as setting a breakpoint.

panic% perl -d test_sym.pl

main::(test_sym.pl:3):      my $sym = Symbol::gensym( );
  DB<1> b Symbol::gensym
  DB<2> c
Symbol::gensym(/usr/lib/perl5/5.6.1/Symbol.pm:86):
86:         my $name = "GEN" . $genseq++;

  DB<2> T
$ = Symbol::gensym( ) called from file `test_sym.pl' line 3

In this example, the call stack is only one level deep, so only that call is printed. We'll look at an example with a deeper stack later. The leftmost character reveals the context in which the subroutine was called. $ represents scalar context; in other examples you may see @, which represents list context, or ., which represents void context. In our case we called:

my $sym = Symbol::gensym( );

which calls the Symbol::gensym( ) in scalar context.

panic% perl -d test_sym2.pl

Book::World2::(test_sym2.pl:5):   for (1, 2) {
  DB<1> b Symbol::qualify
  DB<2> b Symbol::gensym
  DB<3> L
/usr/lib/perl5/5.6.1/Symbol.pm:
 86:        my $name = "GEN" . $genseq++;
   break if (1)
 95:        my ($name) = @_;
   break if (1)

The filename and line number of the breakpoint are displayed just before the source line itself. Because both breakpoints are located in the same file, the filename is displayed only once. After the source line, we see the condition on which to stop. In this case, as the constant value 1 indicates, we will always stop at these breakpoints. Later on you'll see how to specify a condition.

  DB<3> c
Symbol::gensym(/usr/lib/perl5/5.6.1/Symbol.pm:86):
86:         my $name = "GEN" . $genseq++;
  DB<3> T
$ = Symbol::gensym( ) called from file `test_sym2.pl' line 14
. = Book::World2::do_work('now') called from file `test_sym2.pl' line 6

  DB<3> l 85-87
85      sub gensym ( ) {
86=  =>b      my $name = "GEN" . $genseq++;
87:         my $ref = *{$genpkg . $name};

Now we know it's the gensym subroutine, and we also see the breakpoint highlighted with the = =>b markup. We could also use the name of the subroutine to display its code:

  DB<4> l Symbol::gensym
85      sub gensym ( ) {
86=  =>b      my $name = "GEN" . $genseq++;
87:         my $ref = *{$genpkg . $name};
88:         delete $$genpkg{$name};
89:         $ref;
90      }

DB<5> d 95

Now let's look again at the trace produced at the breakpoint:

  DB<3> c
Symbol::gensym(/usr/lib/perl5/5.6.1/Symbol.pm:86):
86:         my $name = "GEN" . $genseq++;
  DB<3> T
$ = Symbol::gensym( ) called from file `test_sym2.pl' line 14
. = Book::World2::do_work('now') called from file `test_sym2.pl' line 6

As you can see, the stack trace prints the values that are passed into the subroutine. Ah, and perhaps we've found our first bug: as we can see from the first character on the second line of output from the Trace command, do_work( ) was called in void context, so the return value was discarded. Let's change the for loop to check the return value of do_work( ):

for (1, 2) {
    my $stuff = do_work("now");
    if ($stuff) {
        print "work is done\n";
    }
}

In this session we will set a breakpoint at line 7 of test_sym2.pl, where we check the return value of do_work( ):

panic% perl -d test_sym2.pl

Book::World2::(test_sym2.pl:5):   for (1, 2) {
  DB<1> b 7
  DB<2> c
Book::World2::(test_sym2.pl:7):       if ($stuff) {
  DB<2>

  DB<2> w
4
5:        for (1, 2) {
6:          my $stuff = do_work("now");
7=  =>b       if ($stuff) {
8:              print "work is done\n";
9           }
10        }
11
12        sub do_work {
13:         my($var) = @_;

Now, let's take a look at the value of the $stuff variable:

  DB<2> p $stuff
HASH(0x82b89b4)

  DB<3> x $stuff
0  HASH(0x82b89b4)
   'sym' => GLOB(0x826a944)
      -> *Symbol::GEN0
   'var' => 'Book::World2::now'

Things seem to be okay. Let's double check by calling do_work( ) with a different value and print the results:

  DB<4> x do_work('later')
0  HASH(0x82bacc8)
   'sym' => GLOB(0x818f16c)
      -> *Symbol::GEN1
   'var' => 'Book::World2::later'

There are only two arguments in the list, so stopping to look at each one isn't too time-consuming, but consider the debugging pace if we had a large list of 100 or so entries. Fortunately, it is possible to customize breakpoints by specifying a condition. Each time a breakpoint is reached, the condition is evaluated, stopping only if the condition is true. In the session below, the window command shows breakable lines. The = =>symbol shows us the line of code that's about to be executed.

panic% perl -d test_sym3.pl

Book::World3::(test_sym3.pl:5): my @args = qw(now later);
  DB<1> w
5=  =>    my @args = qw(now later);
6:      for my $arg (@args) {
7:          my $stuff = do_work($arg);
8:          if ($stuff) {
9:              print "do your work $arg\n";
10          }
11      }
12
13         sub do_work {
14:            my($var) = @_;

We set a breakpoint at line 7 with the condition $arg eq 'later'. As we continue, the breakpoint is skipped when $arg has the value of now but not when it has the value of later:

  DB<1> b 7 $arg eq 'later'
  DB<2> c
do your work now
Book::World3::(test_sym3.pl:7):     my $stuff = do_work($arg);
  DB<2> n
Book::World3::(test_sym3.pl:8):     if ($stuff) {
  DB<2> x $stuff
0  HASH(0x82b90e4)
   'sym' => GLOB(0x82b9138)
      -> *Symbol::GEN1
   'var' => 'Book::World3::later'
  DB<5> c
do your work later
Debugged program terminated.  Use q to quit or R to restart,

Some installations of Perl include a readline module that allows you to work more interactively with the debugger—for example, by pressing the up arrow to see previous commands, which can then be repeated by pressing the Return key.

21.5.7. Interactive Perl Debugging Under mod_cgi

To debug a plain Perl script with Devel::ptkdb, invoke it as:

panic% perl -d:ptkdb myscript.pl

The Tk application will be loaded. Now you can do most of the debugging you did with the command-line Perl debugger, but using a simple GUI to set/remove breakpoints, browse the code, step through it, and more.

With the help of Devel::ptkdb, you can debug your CGI scripts running under mod_cgi (we'll look at mod_perl debugging later). Be sure that the web server's Perl installation includes the Tk package. To enable the debugger, change your shebang line from:

#!/usr/bin/perl -Tw

to:

#!/usr/bin/perl -Twd:ptkdb

You can debug scripts remotely if you're using a Unix-based server and if the machine where you are writing the script has an X server. The X server can be another Unix workstation, or a Macintosh or Win32 platform with an appropriate X Windows package. You must insert the following BEGINsubroutine into your script:

BEGIN {
    $ENV{'DISPLAY'} = "localhost:0.0" ;
}

You may need to replace the localhost value with a real DNS or IP address if you aren't working at the machine itself. You must be sure that your web server has permission to open windows on your X server (see the xhost manpage for more information).

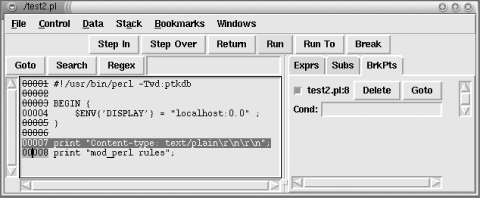

Figure 21-2. Devel::ptkdb Interactive Debugger

21.5.8. Noninteractive Perl Debugging Under mod_perl

panic% setenv PERL5OPT -d
panic% setenv PERLDB_OPTS \
       "NonStop=1 LineInfo=/tmp/db.out AutoTrace=1 frame=2"

Now watch /tmp/db.out for line:filename information. This is most useful for tracking those core dumps that normally leave us guessing, even with a stack trace from gdb, which we'll discuss later. db.out will show you what Perl code triggered the core dump. Refer to the perldebug manpage for more PERLDB_OPTS options.

Say we execute a simple Apache::Registryscript, test.pl:

use strict;
my $r = shift;
$r->send_http_header("text/plain");
$r->print("Hello");

The generated trace found in /tmp/db.out is too long to be printed here in its entirety. We will show only the part that actually executes the handler created on the fly by Apache::Registry:

entering Apache::ROOT::perl::test_2epl::handler
 2:
 3:
 entering Apache::send_http_header
 exited Apache::send_http_header
 4:
 entering Apache::print
 exited Apache::print
exited Apache::ROOT::perl::test_2epl::handler

You can see how Perl executes this script—first the send_http_header( ) function is executed, then the string "Hello" is printed.

21.5.9. Interactive mod_perl Debugging

<IfDefine PERLDB>

    <Perl>
        use Apache::DB ( );
        Apache::DB->init;
    </Perl>

    <Location />
        PerlFixupHandler Apache::DB
    </Location>

</IfDefine>

Since we have used "/" as the argument to the Location directive, the debugger will be invoked for any kind of request, but of course it will immediately quit unless there is some Perl module registered to handle these requests.

In our first example, we will debug the standard Apache::Status module, which is configured like this:

PerlModule Apache::Status
<Location /perl-status>
    SetHandler perl-script
    PerlHandler Apache::Status
</Location>

When the server is started with the debugging flag, a notice will be printed to the console:

panic% ./httpd -X -DPERLDB
[notice] Apache::DB initialized in child 950

The debugger prompt will not be available until the first request is made (in our case, to http://localhost/perl-status). Once we are at the prompt, all the standard debugging commands are available. First we run window to get some of the context for the code being debugged, then we move to the next statement after a value has been assigned to $r, and finally we print the request URI. If no breakpoints are set, the continue command will give control back to Apache and the request will finish with the Apache::Status main menu showing in the browser window:

Loading DB routines from perl5db.pl version 1.07
Emacs support available.

Enter h or `h h' for help.

Apache::Status::handler(.../5.6.1/i386-linux/Apache/Status.pm:55):
55:         my($r) = @_;
  DB<1> w
52      }
53
54      sub handler {
55=  =>       my($r) = @_;
56:         Apache->request($r); #for Apache::CGI
57:         my $qs = $r->args || "";
58:         my $sub = "status_$qs";
59:         no strict 'refs';
60
61:         if($qs =~ s/^(noh_\w+).*/$1/) {
  DB<1> n
Apache::Status::handler(.../5.6.1/i386-linux/Apache/Status.pm:56):
56:         Apache->request($r); #  for Apache::CGI
  DB<1> p $r->uri
/perl-status
  DB<2> c

All the techniques we saw while debugging plain Perl scripts can be applied to this debugging session.

When a request is issued, the debugger stops at line 28 of Apache/Registry.pm. We set a breakpoint at line 140, which is the line that actually calls the script wrapper subroutine. The continue command will bring us to that line, where we can step into the script handler:

Apache::Registry::handler(.../5.6.1/i386-linux/Apache/Registry.pm:28):
28:       my $r = shift;
  DB<1> b 140
  DB<2> c
Apache::Registry::handler(.../5.6.1/i386-linux/Apache/Registry.pm:140):
140:            eval { &{$cv}($r, @_) } if $r->seqno;
  DB<2> s
Apache::ROOT::perl::test_2epl::handler((eval 87):3):
3:        my $r = shift;

Notice the funny package name—it's generated from the URI of the request, for namespace protection. The filename is not displayed, since the code was compiled via eval( ), but the print command can be used to show you $r->filename:

  DB<2> n
Apache::ROOT::perl::test_2epl::handler((eval 87):4):
4:        $r->send_http_header('text/plain');
  DB<2> p $r->filename
/home/httpd/perl/test.pl

The line number might seem off too, but the window command will give you a better idea of where you are:

  DB<4> w
1:      package Apache::ROOT::perl::test_2epl;use Apache qw(exit);
sub handler {  use strict;
2
3:        my $r = shift;
4=  =>      $r->send_http_header('text/plain');
5
6:        print "mod_perl rules";
7
8       }
9       ;

The code from the test.pl file is between lines 2 and 7. The rest is the Apache::Registry magic to cache your code inside a handlersubroutine.
