System Administration Guide: IP Services
Previous Next

IPv6 Packet Header Format

The IPv6 protocol defines a set of headers, including the basic IPv6 header and the IPv6 extension headers. The following figure shows the fields that appear in the IPv6 header and the order in which the fields appear.

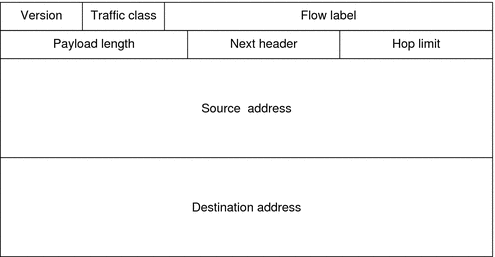

Figure 11-3 IPv6 Basic Header Format
Diagram shows that the 128 bit IPv6 header consist of eight fields, including the source and destination addresses.

The following list describes the function of each header field.

  • Version – 4-bit version number of Internet Protocol = 6.

  • Traffic class – 8-bit traffic class field.

  • Flow label – 20-bit field.

  • Payload length – 16-bit unsigned integer, which is the rest of the packet that follows the IPv6 header, in octets.

  • Next header – 8-bit selector. Identifies the type of header that immediately follows the IPv6 header. Uses the same values as the IPv4 protocol field.

  • Hop limit – 8-bit unsigned integer. Decremented by one by each node that forwards the packet. The packet is discarded if the hop limit is decremented to zero.

  • Source address – 128 bits. The address of the initial sender of the packet.

  • Destination address – 128 bits. The address of the intended recipient of the packet. The intended recipient is not necessarily the recipient if an optional routing header is present.

IPv6 Extension Headers

IPv6 options are placed in separate extension headers that are located between the IPv6 header and the transport-layer header in a packet. Most IPv6 extension headers are not examined or processed by any router along a packet's delivery path until the packet arrives at its final destination. This feature provides a major improvement in router performance for packets that contain options. In IPv4, the presence of any options requires the router to examine all options.

Unlike IPv4 options, IPv6 extension headers can be of arbitrary length. Also, the number of options that a packet carries is not limited to 40 bytes. This feature, in addition to the manner in which IPv6 options are processed, permits IPv6 options to be used for functions that are not practical in IPv4.

To improve performance when handling subsequent option headers, and the transport protocol that follows, IPv6 options are always an integer multiple of 8 octets long. The integer multiple of 8 octets retains the alignment of subsequent headers.

The following IPv6 extension headers are currently defined:

  • Routing – Extended routing, such as IPv4 loose source route

  • Fragmentation – Fragmentation and reassembly

  • Authentication – Integrity and authentication, and security

  • Encapsulating Security Payload – Confidentiality

  • Hop-by-Hop options – Special options that require hop-by-hop processing

  • Destination options – Optional information to be examined by the destination node
