3.4. Blend

Figure 13.50. The Blend tool in Toolbox

The Blend tool in Toolbox

This tool fills the selected area with a gradient blend of the foreground and background colors by default, but there are many options. To make a blend, drag the cursor in the direction you want the gradient to go, and release the mouse button when you feel you have the right position and size of your blend. The softness of the blend depends on how far you drag the cursor. The shorter the drag distance, the sharper it will be.

There are an astonishing number of things you can do with this tool, and the possibilities may seem a bit overwhelming at first. The two most important options you have are the Gradient and the Shape. Clicking the Gradient button in the tool options brings up a Gradient Select window, allowing you to choose from among a variety of gradients supplied with GIMP; you can also construct and save custom gradients. Further information about gradients can be found in Section 10, “ Gradients and Section 3.4, “ Gradients Dialog.

For Shape, there are 11 options: Linear, Bilinear, Radial, Square, Conical (symmetric), Conical (asymmetric), Shaped (angular), Shaped (spherical), Shaped (dimpled), Spiral (clockwise), and Spiral (counterclockwise); these are described in detail below. The Shaped options are the most interesting: they cause the gradient to follow the shape of the selection boundary, no matter how twisty it is. Unlike the other shapes, Shaped gradients are not affected by the length or direction of the line you draw: for them as well as every other type of gradient you are required to click inside the selection and move the mouse, but a Shaped appears the same no matter where you click or how you move.

[Tip] Tip

Check out the Difference option in the Mode menu, where doing the same thing (even with full opacity) will result in fantastic swirling patterns, changing and adding every time you drag the cursor.

3.4.1. Activating the Tool

There are different possibilities to activate the tool:

  • From the image-menu: ToolsPaint ToolsBlend.

  • By clicking the tool icon .

  • By clicking on the L keyboard shortcut.

3.4.2. Key modifiers (Defaults)

Ctrl

Ctrl is used to create straight lines that are constrained to 15 degree absolute angles.

3.4.3. Options

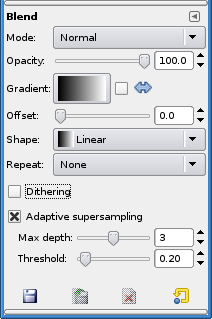

Figure 13.51. “Blend” tool options

Blend tool options

Normally, tool options are displayed in a window attached under the Toolbox as soon as you activate a tool. If they are not, you can access them from the image menu bar through WindowsDockable WindowsTool Options which opens the option window of the selected tool.

Mode; Opacity
[Note] Note

See the Brush Tools Overview for a description of tool options that apply to many or all brush tools.

Gradient

A variety of gradient patterns can be selected from the drop-down list. The tool causes a shading pattern that transitions from foreground to background color or introducing others colors, in the direction the user determines by drawing a line in the image. For the purposes of drawing the gradient, the Reverse check-box reverse the gradient direction with the effect, for instance, of swapping the foreground and background colors.

Offset

The Offset value permits to increase the “slope” of the gradient. It determines how far from the clicked starting point the gradient will begin. Shaped forms are not affected by this option.

Figure 13.52.  Blend” tool: Offset example

Blend tool: Offset example

Top, Offset = 0 ; Bottom, Offset = 50%


Shape

The GIMP provides 11 shapes, which can be selected from the drop-down list. Details on each of the shapes are given below.

Figure 13.53.  Examples of gradient shapes

Examples of gradient shapes

Linear

Examples of gradient shapes

Bi-Linear

Examples of gradient shapes

Radial


Linear

This gradient begins with the foreground color at the starting point of the drawn line and transitions linearly to the background color at the ending point.

Bi-Linear

This shape proceeds in both directions from the starting point, for a distance determined by the length of the drawn line. It is useful, for example, for giving the appearance of a cylinder.

Radial

This gradient gives a circle, with foreground color at the center and background color outside the circle. It gives the appearance of a sphere without directional lighting.

Square; Shaped

Figure 13.54.  Square-shaped gradient examples

Square-shaped gradient examples

Square

Square-shaped gradient examples

Shaped (angular)

Square-shaped gradient examples

Shaped (spherical)

Square-shaped gradient examples

Shaped (dimpled)


There are four shapes that are some variant on a square: Square, Shaped (angular), Shaped (spherical), and Shaped (dimpled). They all put the foreground color at the center of a square, whose center is at the start of the drawn line, and whose half-diagonal is the length of the drawn line. The four options provide a variety in the manner in which the gradient is calculated; experimentation is the best means of seeing the differences.

Conical (symmetric); Conical (asymmetric)

Figure 13.55.  Conical gradient examples

Conical gradient examples

Conical (symmetrical)

Conical gradient examples

Conical (asymmetrical)


The Conical (symmetrical) shape gives the sensation of looking down at the tip of a cone, which appears to be illuminated with the background color from a direction determined by the direction of the drawn line.

Conical (asymmetric) is similar to Conical (symmetric) except that the "cone" appears to have a ridge where the line is drawn.

Spiral (clockwise); Spiral (counterclockwise)

Figure 13.56.  Spiral gradient examples

Spiral gradient examples

Spiral (clockwise)

Spiral gradient examples

Spiral (counterclockwise)


The Spiral shape provide spirals whose repeat width is determined by the length of the drawn line.

Repeat

There are two repeat modes: Sawtooth Wave and Triangular Wave. The Sawtooth pattern is achieved by beginning with the foreground, transitioning to the background, then starting over with the foreground. The Triangular starts with the foreground, transitions to the background, then transitions back to the foreground.

Dithering

Dithering is fully explained in the Glossary

Adaptive Supersampling

This a more sophisticated means of smoothing the "jagged" effect of a sharp transition of color along a slanted or curved line. Only tests can allow you to choose.
