NOTE: CentOS Enterprise Linux is built from the Red Hat Enterprise Linux source code. Other than logo and name changes CentOS Enterprise Linux is compatible with the equivalent Red Hat version. This document applies equally to both Red Hat and CentOS Enterprise Linux.

34.13. Sharing a Printer

The Printer Configuration Tool's ability to share configuration options can only be used if you are using the CUPS printing system.

Allowing users on a different computer on the network to print to a printer configured for your system is called sharing the printer. By default, printers configured with the Printer Configuration Tool are not shared.

To share a configured printer, start the Printer Configuration Tool and select a printer from the list. Then select Action => Sharing from the pulldown menu.

Note Note


If a printer is not selected, Action => Sharing only shows the system-wide sharing options normally shown under the General tab.

On the Queue tab, select the option to make the queue available to other users.

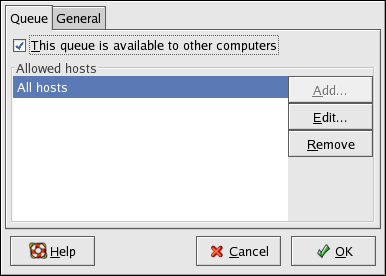

Figure 34-17. Queue Options

After selecting to share the queue, by default, all hosts are allowed to print to the shared printer. Allowing all systems on the network to print to the queue can be dangerous, especially if the system is directly connected to the Internet. It is recommended that this option be changed by selecting the All hosts entry and clicking the Edit button to display the window shown in Figure 34-18.

If you have a firewall configured on the print server, it must be able to send and receive connections on the incoming UDP port, 631. If you have a firewall configured on the client (the computer sending the print request), it must be allowed to send and accept connections on port 631.

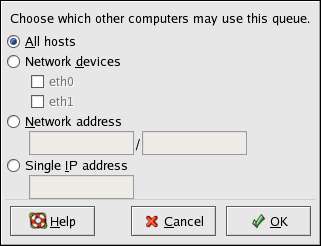

Figure 34-18. Allowed Hosts

The General tab configures settings for all printers, including those not viewable with the Printer Configuration Tool. There are two options:

  • Automatically find remote shared queues — Selected by default, this option enables IPP browsing. When other machines on the network broadcast the queues that they have, the queues are automatically added to the list of printers available to the system; no additional configuration is required for a printer found from IPP browsing. This option does not automatically share the printers configured on the local system.

  • Enable LPD protocol — This option allows the printer to receive print jobs from clients configured to use the LPD protocol using the cups-lpd service, which is an xinetd service.

    Warning Warning


    If this option is enabled, all print jobs are accepted from all hosts if they are received from an LPD client.

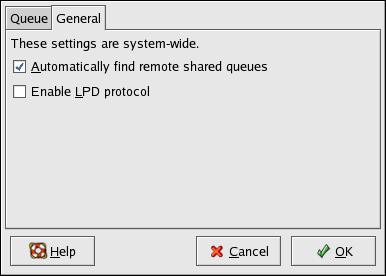

Figure 34-19. System-wide Sharing Options
